TAE Series Excavator Transporters 20–205 t | Specs

TAE Series

A complete set = two towable transporters (one under each track) plus hoisting chains. Choose by your machine’s operating weight and track width — the model code mirrors the machine class (TAE70 fits ~70-tonne-class machines).

Self-Loading

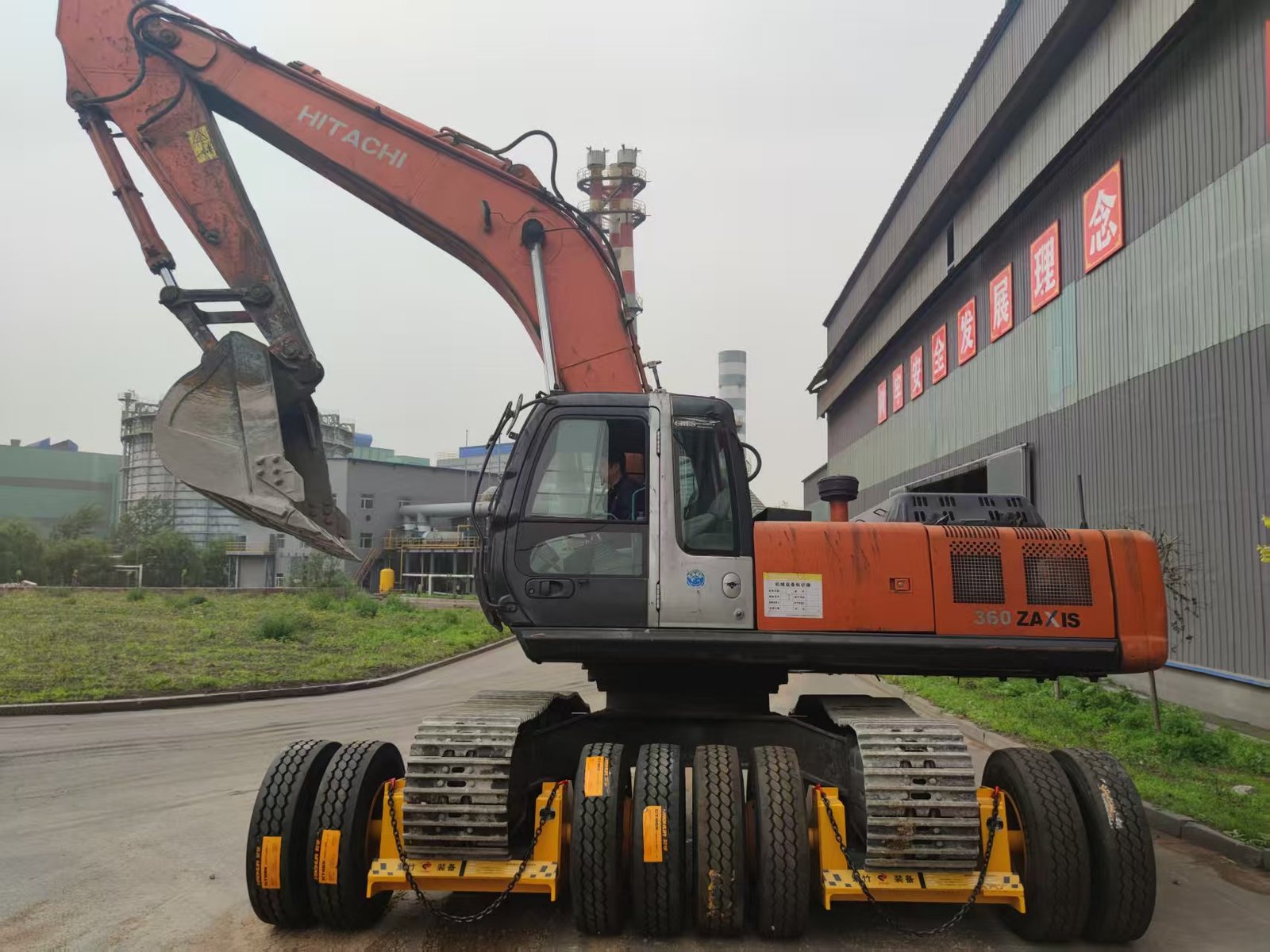

The excavator loads itself using its own bucket and the hoisting chains supplied with each set — no crane and no low-loader on site.

Model Range

TAE models carry tracked machinery from 24 to 205 tonnes, with 600–800 mm track widths. Standard line shown below; larger and custom sizes are available on request.

TAE20–600 / TAE30–600

For 600 mm track machines.

24–31 t Class

TAE50–700 / TAE70–700

For 700 mm track machines.

51–72 t Class

TAE120–700 / TAE200–800

For 700–800 mm track machines

123–205 t Class

TAE Models

Models for every class — from 20 to 565 tonnes of tracked machinery. If your machine isn’t in the table, send us its specs and we’ll match or engineer a set.

Model	Unit size L×W×H (mm)	Set weight (t)	Track width	Min. track gauge	Max. load	Towing speed	Tires	Ground clearance

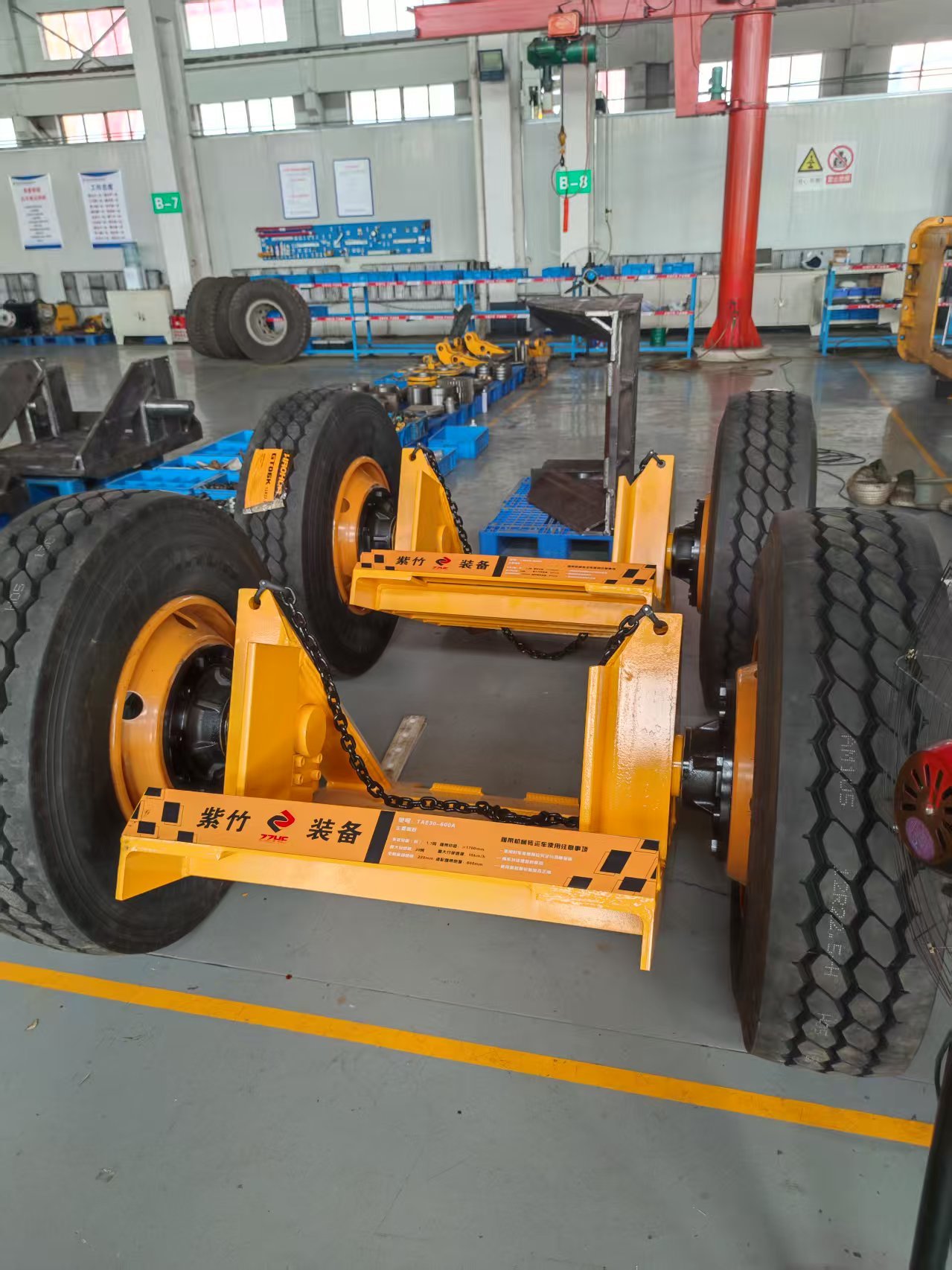

TAE20-600	1240×1890×1085	1.65	600 mm	≥2000 mm	24 t	15 km/h	12.00R22.5 ×4	252 mm
TAE30-600	1240×1857×1050	1.7	600 mm	≥1950 mm	31 t	15 km/h	385/65R22.5 ×4	235 mm

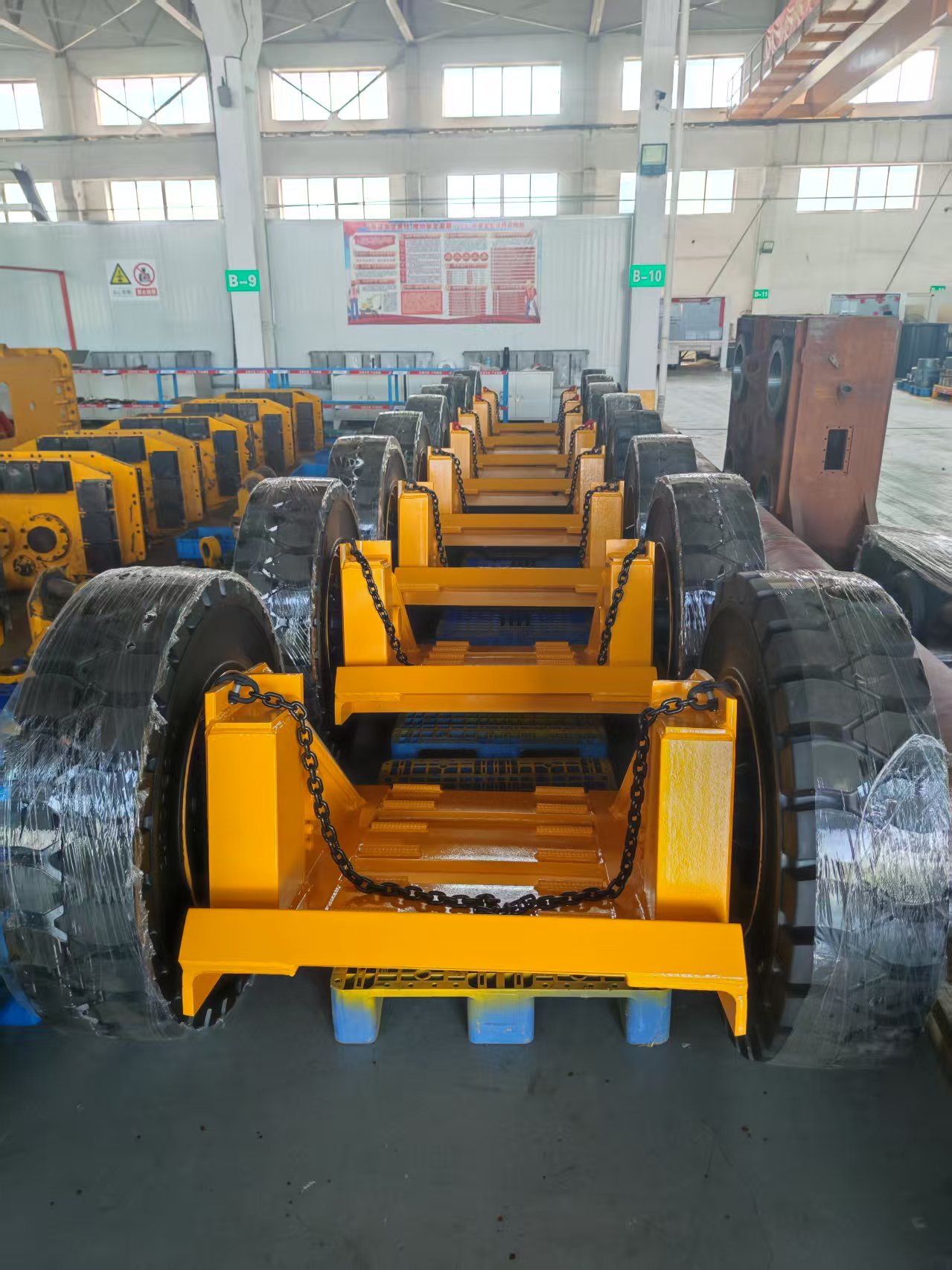

TAE50-700A	1290×1700×1085	2.6	600–700 mm	≥1800 mm	51 t	15 km/h	12.00-20 solid ×4	252 mm
TAE50-700B	1290×2540×1085	2.5	600–700 mm	≥2600 mm	51 t	15 km/h	12.00R22.5 ×8	252 mm

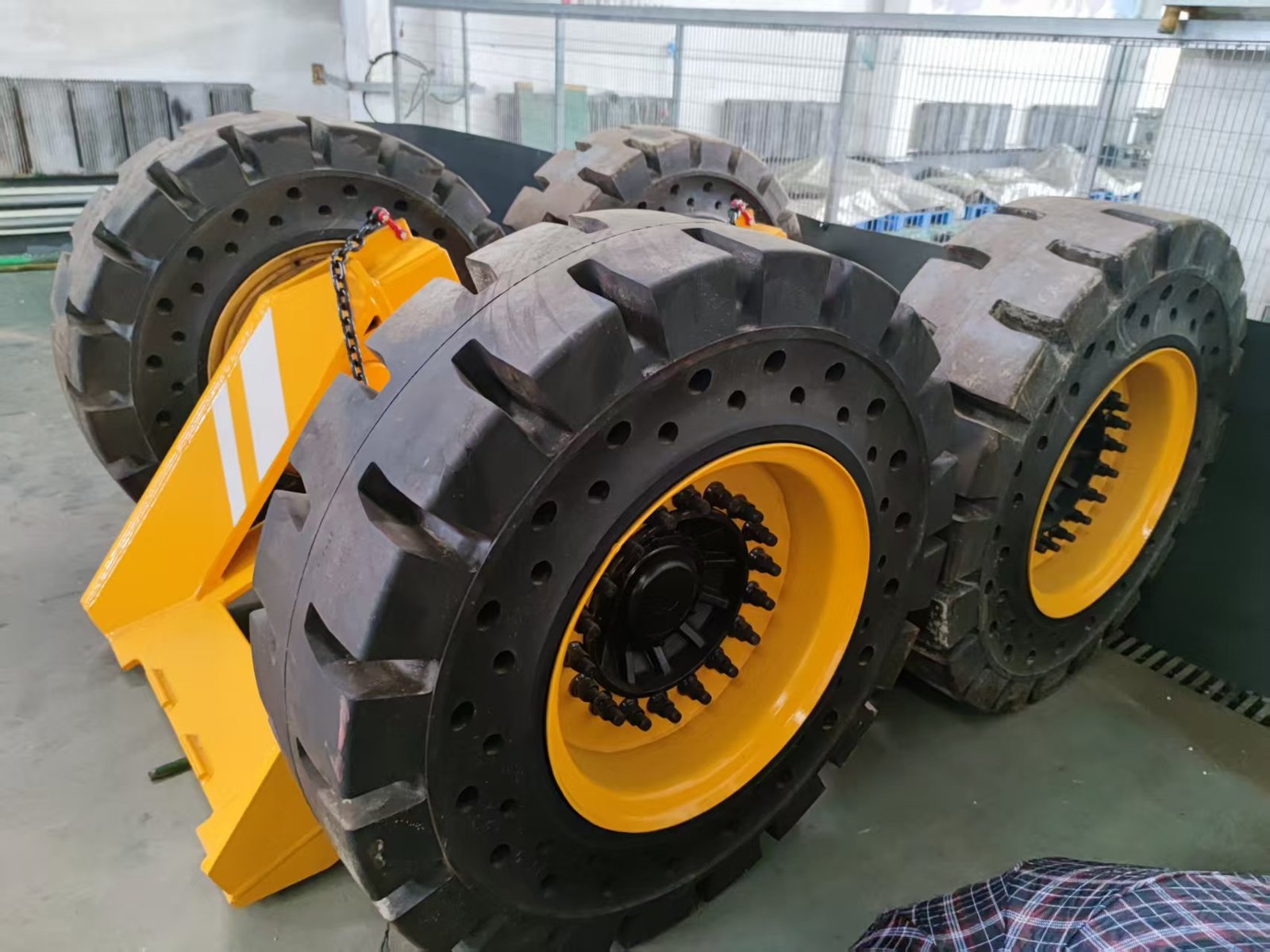

TAE70-700	1600×2050×1350	4.4	600–700 mm	≥2150 mm	72 t	15 km/h	17.5-25 ×4	300 mm

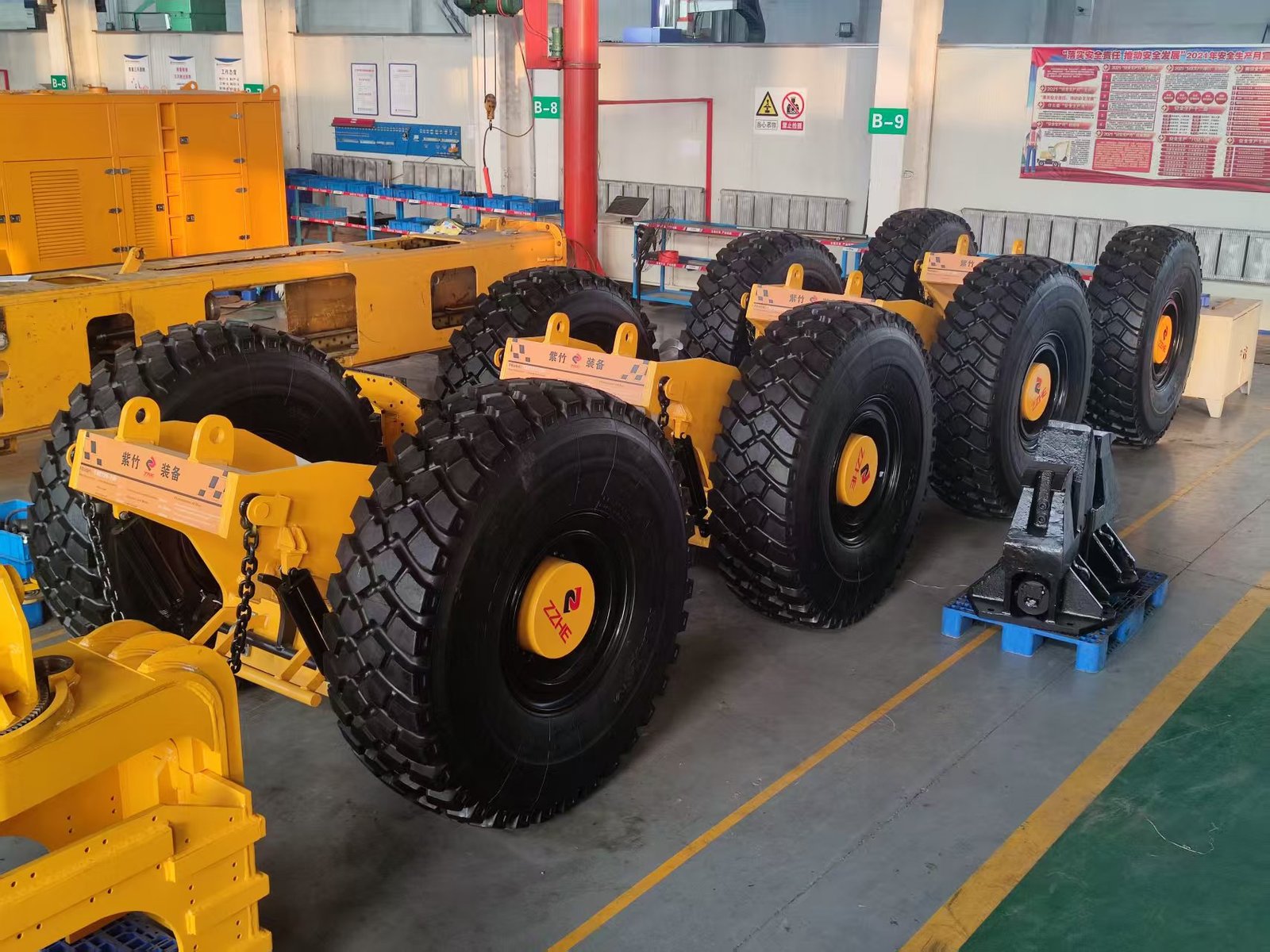

TAE120-700	2400×2365×1650	7.5	600–700 mm	≥2450 mm	123 t	15 km/h	18.00R25 ×4	285 mm

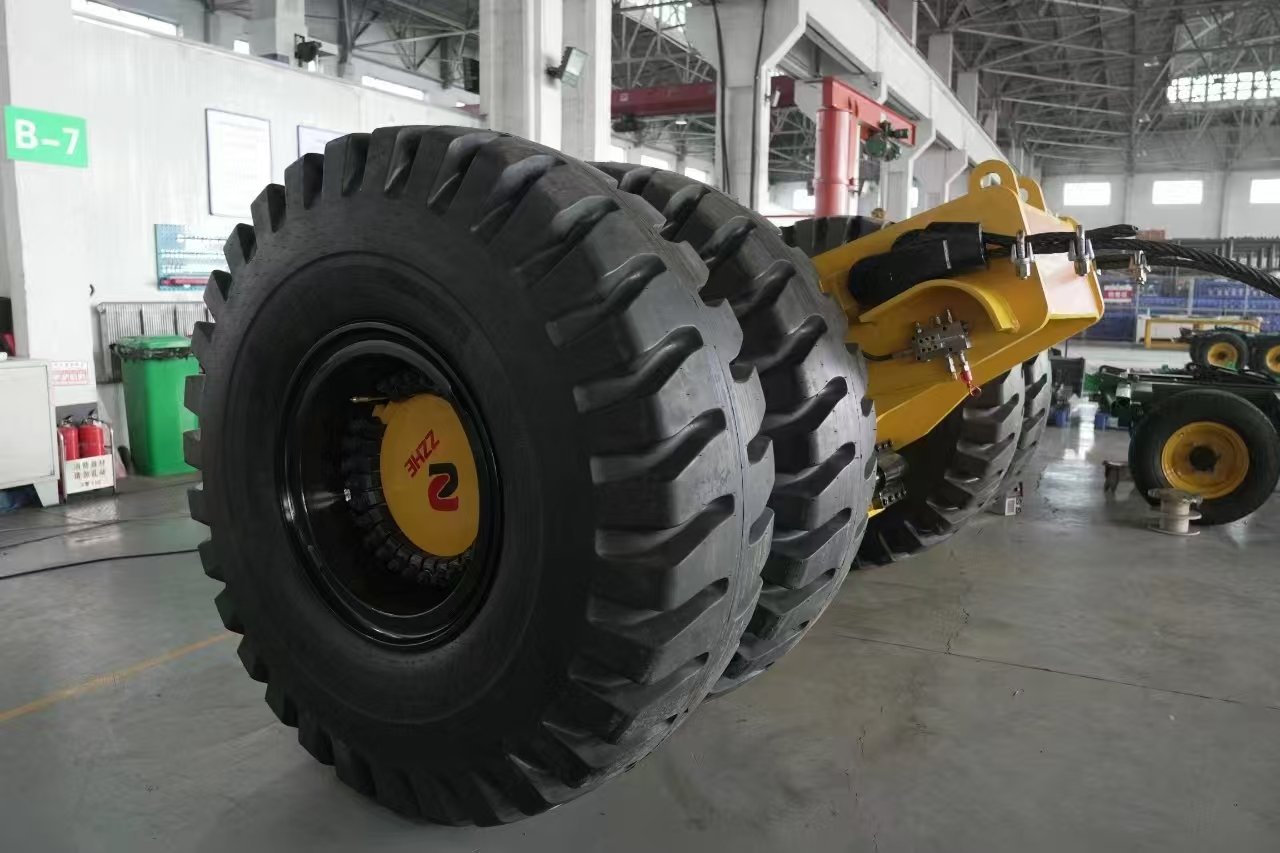

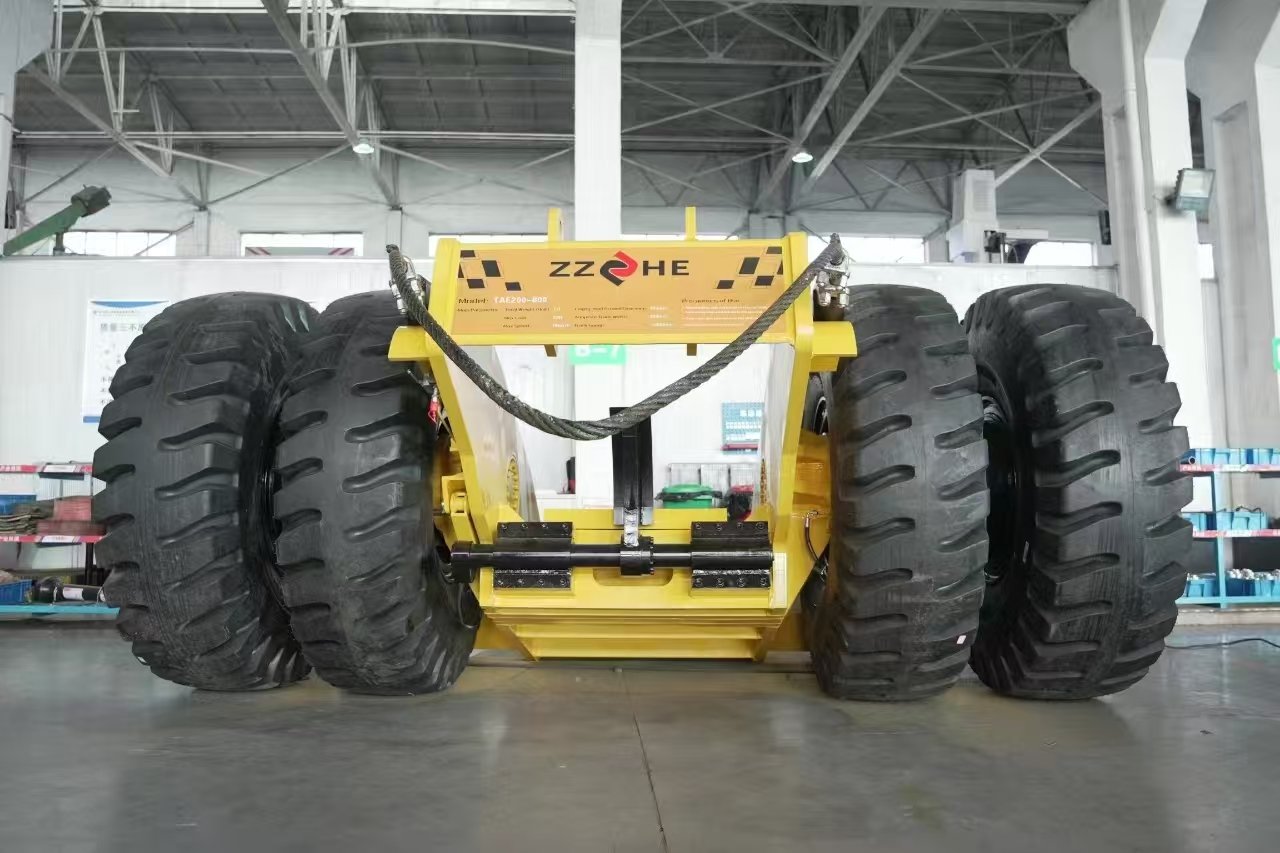

TAE200-800	2570×3758×1675	17	800 mm	≥4000 mm	205 t	10 km/h	18.00-25TL40 ×8	315 mm

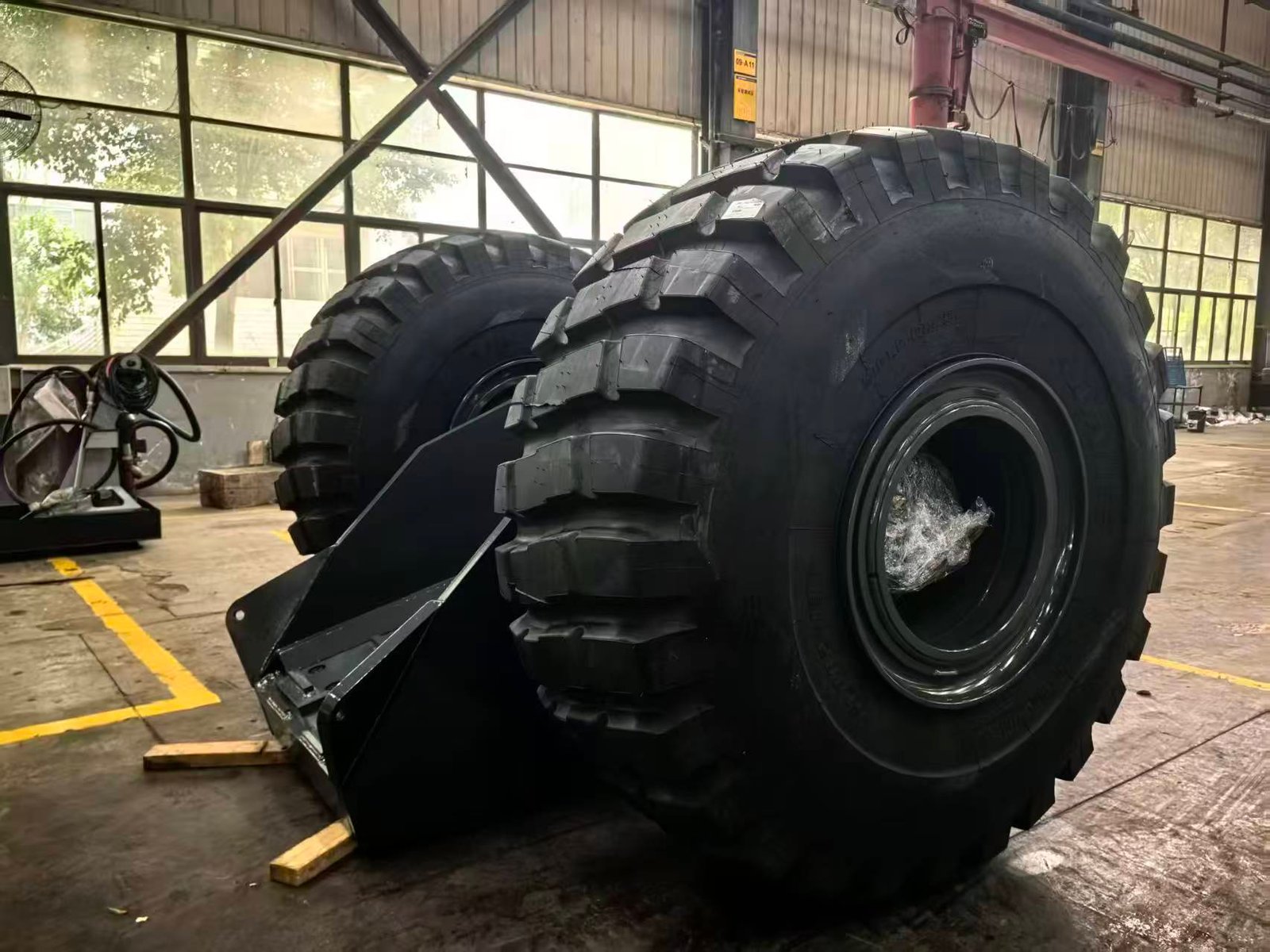

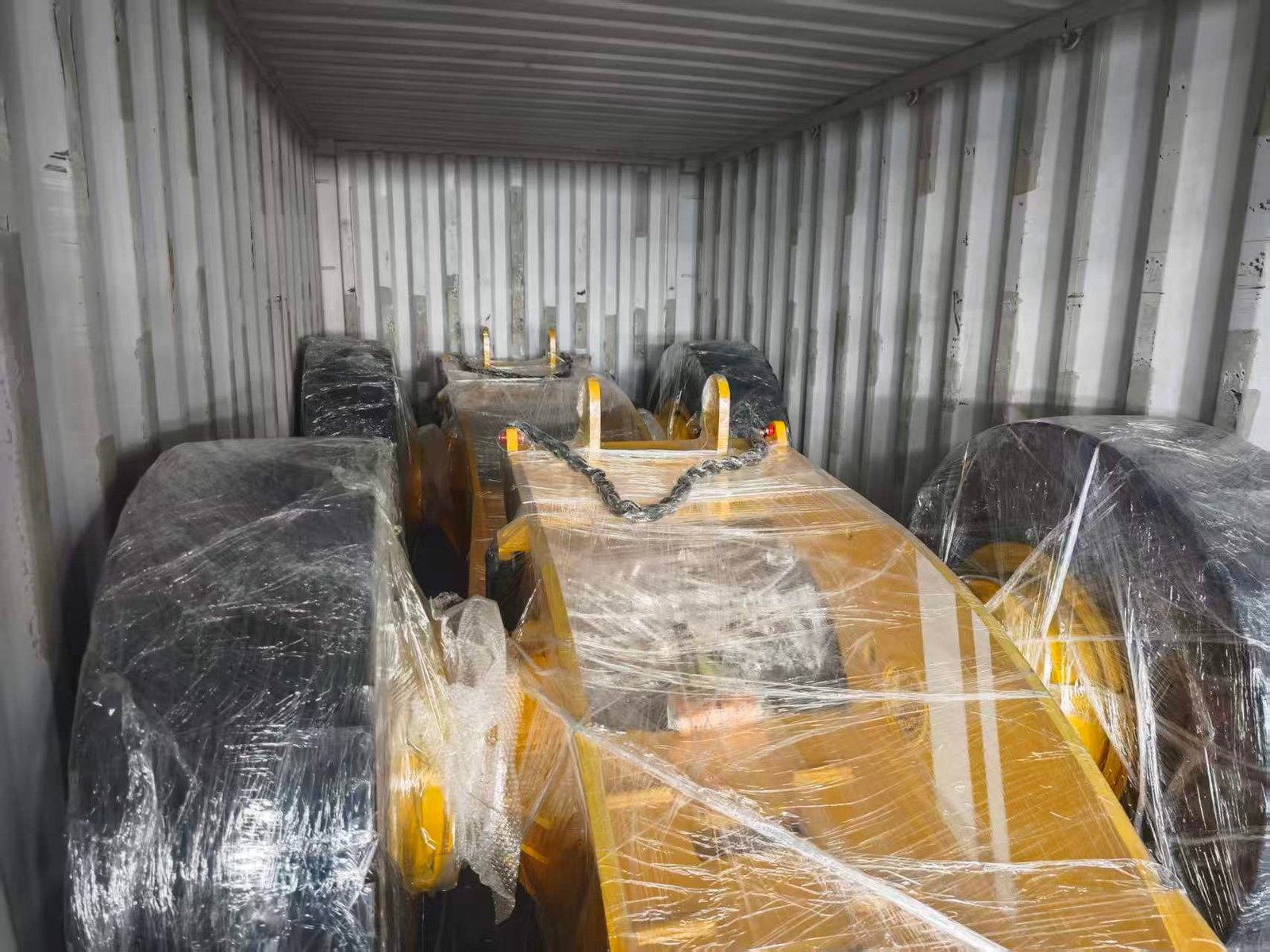

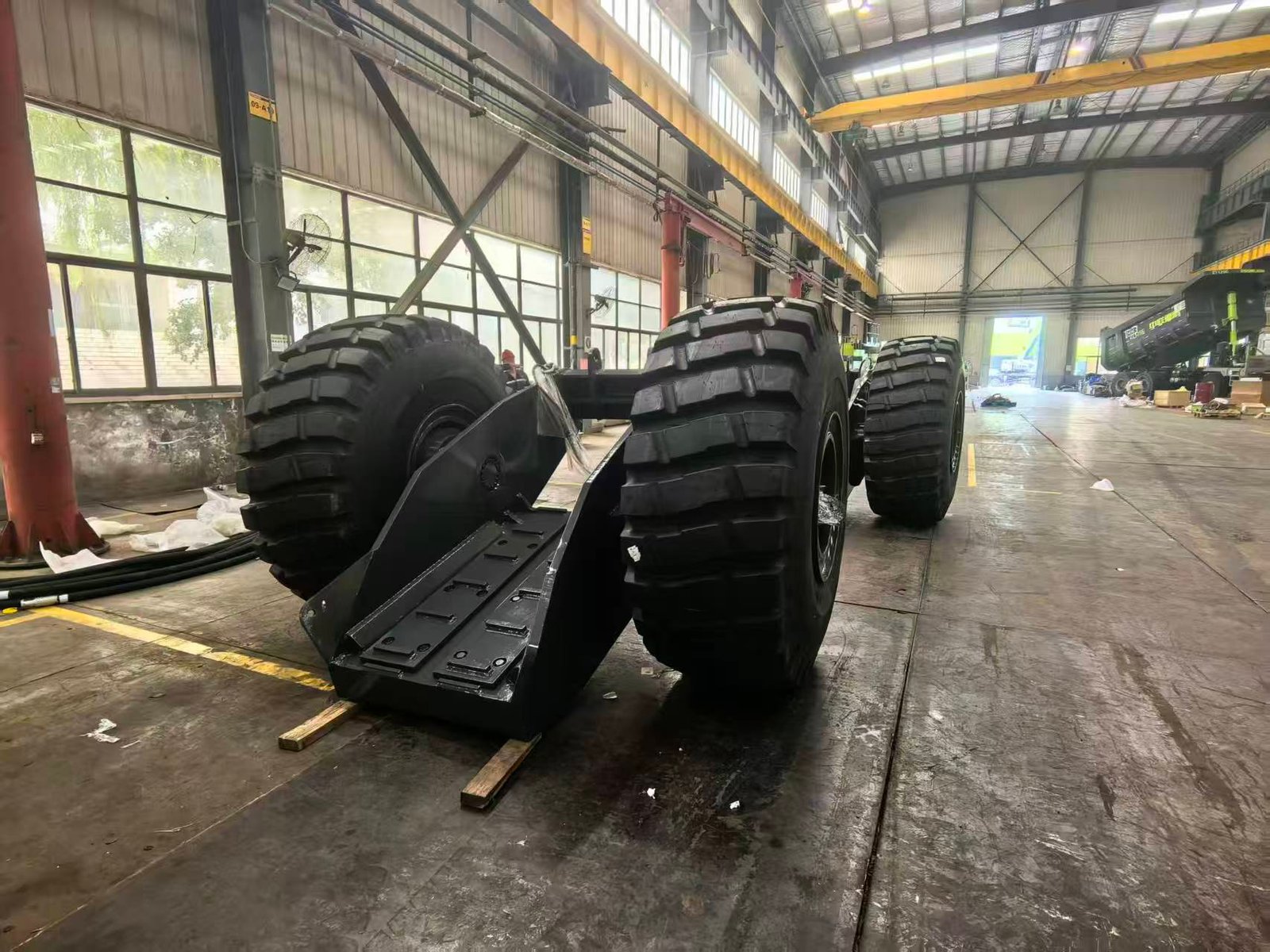

Pneumatic and solid tire options available across the range. Recommended tire pressures and loading instructions are in the operator manual shipped with every set. * TAE90-700 and TAE150-800 specifications available on request.
